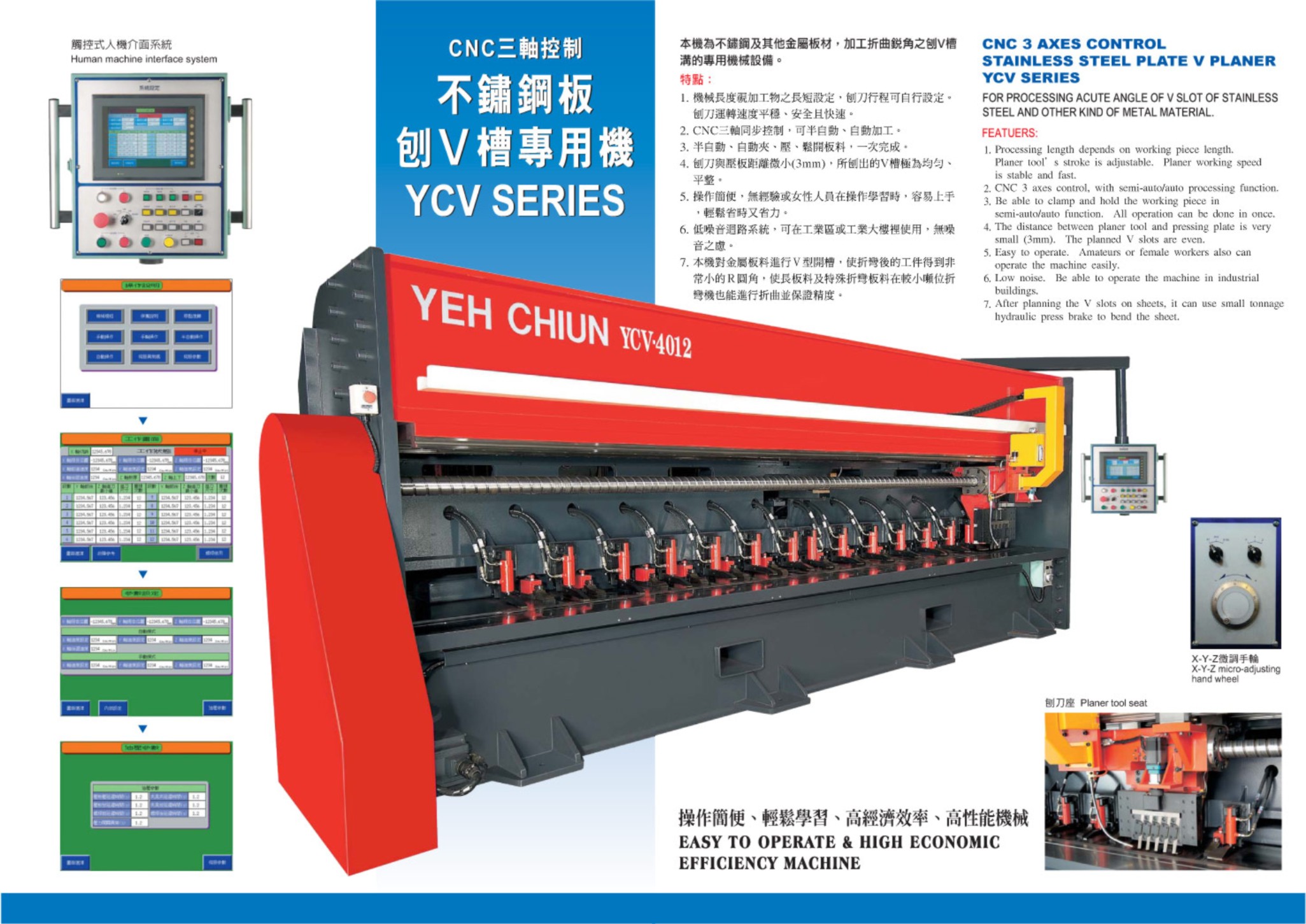

• CNC 3 Axis Controller V- Planner

CNC 3 axis Controller V-Planner.
Easy to operation, high performance .

After planning the slots on sheet, it can use small tonnage press brake machine to bend the sheets.

Use 5 planner tools, 4 times higher manufacturing efficiency.



CNC 3 AXES CONTROL STAINLESS STEEL PLATE V PLANER
SPECIFICATION
Type
(Model)
YCV-2512 YCV-4012 YCV-6012
CAPACITY MATERIAL SUS304 (不鏽鋼板)
LENGTH (mm) 300~2500 300~4000 300~6000
WIDTH (mm) 30~1200
THICKNESS (mm) 1.5~2.0 (3mm is for special usage)
MACHINE SIZE MACHINE / NW
(L x H x W / mm) (Ton)
3880 x 2000 x 2300 / 10t 5400 x 2135 x 2300 / 18t 8080 x 2350 x 2300 / 25t
HYDRAULIC CIRCUIT / N.W (L x H x W / mm ) (kg) 860 x 600 x 600 / 110kg
CONTROL PANEL / N.W (L x H x W / mm ) (kg) 1660 x 600 x 550 / 140kg
OPERATION PANEL / N.W (L x H x W / mm ) (kg) 420 x 490 x 270 / 20kg
SPEED NORMAL CUTTING SPEED (M / Min) 10~15
FASTEST CUTTING SPEED (M / Min) 25
DELIVERY SHEET BACKWARD SPEED (mm / Min) 300~600
DELIVERY SHEET FORWARD SPEED (mm / Min) 300~600
MOTOR MAIN MOTOR (kw) AC SERVO MOTOR 7.0kw
POSITIONING MOTOR (kw) AC SERVO MOTOR 2.0kw
PLANER TOOL MOTOR (kw) AC SERVO MOTOR 0.4kw
HYDRAULIC MOTOR (kw) 2.25kw
Machine Specifications And Dimensions
Under our continuous R&D, for any change in specifications without prior notice.
